AH36 EH36 Lub kaum sab xis Bar
【GNEE Group Chaw Ua Haujlwm Ib puag ncig Showcase】
Khoom Description
GNEE tsim AH36 EH36Lub kaum sab xis steelnyob rau hauv ntau qhov ntau thiab tsawg thiab ntev, ua kom yooj yim los kho lawv rau qhov tshwj xeeb qhov ntev ntawm koj qhov project. Txawm hais tias koj xav tau tus qauv ntev lossis qhov loj me, peb tuaj yeem pab koj tsim cov kev daws teeb meem zoo tshaj plaws rau koj cov kev xav tau.
Cov kaum peb tsim tau raws li cov qauv kev lag luam nruj thiab txhua yam kev cai tsim nyog. Peb txaus siab rau qhov zoo ntawm peb cov khoom thiab mus rau qhov ntev kom ntseeg tau tias peb cov ces kaum yog qhov zoo tshaj plaws.
Ntxiv rau qhov zoo thiab ua haujlwm ntev, AH36 EH36Lub kaum hlaupeb tsim tau yooj yim ua hauj lwm nrog. Nws tuaj yeem raug txiav, drilled thiab machined kom tau raws li koj cov kev xav tau tshwj xeeb.AH36 EH36 Lub kaum sab xis beam yog ntau yam thiab siv tau, thiab tuaj yeem siv rau ntau yam kev siv xws li thav duab thiab kev txhawb nqa kab.
Khoom Paub meej
| Khoom npe | AH36 EH36 Lub kaum sab xis Bar |
| Loj | 100 * 100mm-900mm * 300mm |
| Ntev |
raws li koj thov |
| Alloy los tsis | Tsis yog |
| Cov qauv | JIS, ASTM, GB, EN, thiab lwm yam. |
| Ntim | hauv pob, ntim nrog steel siv nruj nreem |
| Nto | Pleev xim; Galvanized; Weld |
| Keeb kwm | Tuam Tshoj |
| Nqe Nqe | FOB, CIF, EXW, DDP, thiab lwm yam. |
| Lub sij hawm xa tuaj | 3-30 hnub, raws li koj qhov ntau |
Khoom Paub meej
| Loj | Thickness | Pawg | Ntev |
|---|---|---|---|
| (mm) | (mm) | (kg / m) | (m) |
| 13 x 13 | 3 | 0.57 | 6.1 |
| 20 x 20 | 3 | 0.88 | 6.1 |
| 25 x 25 | 3 | 1.11 | 6.1 |
| 25 x 25 | 4 | 1.45 | 6.1 |
| 25 x 25 | 5 | 1.77 | 6.1 |
| 30 x 30 | 3 | 1.36 | 6.1 |
| 30 x 30 | 5 | 2.18 | 6.1 |
| 30 x 30 | 6 | 2.56 | 6.1 |
| 40 x 40 | 3 | 1.82 | 6.1 |
| 40 x 40 | 5 | 2.97 | 6.1 |
| 40 x 40 | 6 | 3.52 | 6.1 |
| 45 x 45 | 5 | 3.38 | 6.1 |
| 45 x 45 | 6 | 4.00 | 6.1 |
| 50 x 50 | 3 | 2.30 | 6.1 |
| 50 x 50 | 5 | 3.77 | 6.1 |
| 50 x 50 | 6 | 4.47 | 6.1 |
| 50 x 50 | 8 | 5.82 | 6.1 |
| 60 x 60 | 5 | 4.57 | 6.1 |
| 60 x 60 | 6 | 5.42 | 6.1 |
| 60 x 60 | 8 | 7.09 | 6.1 |
| 60 x 60 | 10 | 8.69 | 6.1 |
| 70 x 70 | 6 | 6.38 | 6.1 |
| 70 x 70 | 8 | 8.36 | 6.1 |
| 70 x 70 | 10 | 10.30 | 6.1 |
| 75 x 75 | 6 | 7.14 | 6.1 |
| 75 x 75 | 8 | 8.99 | 6.1 |
| 75 x 75 | 10 | 10.30 | 6.1 |
| 80 x 80 | 6 | 7.34 | 6.1 |
| 80 x 80 | 8 | 9.63 | 6.1 |
| 80 x 80 | 10 | 11.90 | 6.1 |
| 80 x 80 | 12 | 14.36 | 6.1 |
| 90 x 90 | 6 | 8.30 | 6.1 |
| 90 x 90 | 8 | 10.90 | 6.1 |
| 90 x 90 | 10 | 13.40 | 6.1 |
| 90 x 90 | 12 | 15.90 | 6.1 |
| 100 x 100 | 8 | 15.90 | 6.1 |
| 100 x 100 | 10 | 15.00 | 6.1 |
| 100 x 100 | 12 | 17.80 | 6.1 |
| 100 x 100 | 15 | 21.90 | 6.1 |
Cov saum toj no yog ib feem ntawm cov ntaub ntawv loj!
Yog xav paub ntxiv thov hu rau peb!

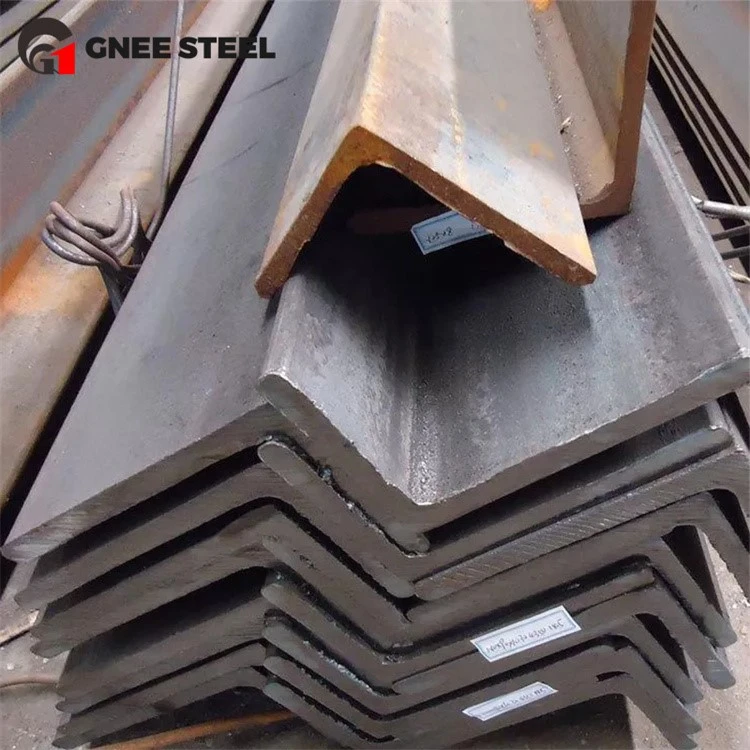

lub kaum sab xis duab
GNEE pab pawg neeg tuaj xyuas
GNEE pab pawg neeg tuaj xyuas
Peb tuaj yeem muab cov kev pabcuam tshaj lij, peb muaj AH36 EH36 Lub kaum ntse ntse Bar thiab H profile steel thiab lwm yam khoom hauv Tshuag, yog tias koj muaj kev xav tau, thov hu rau peb.
