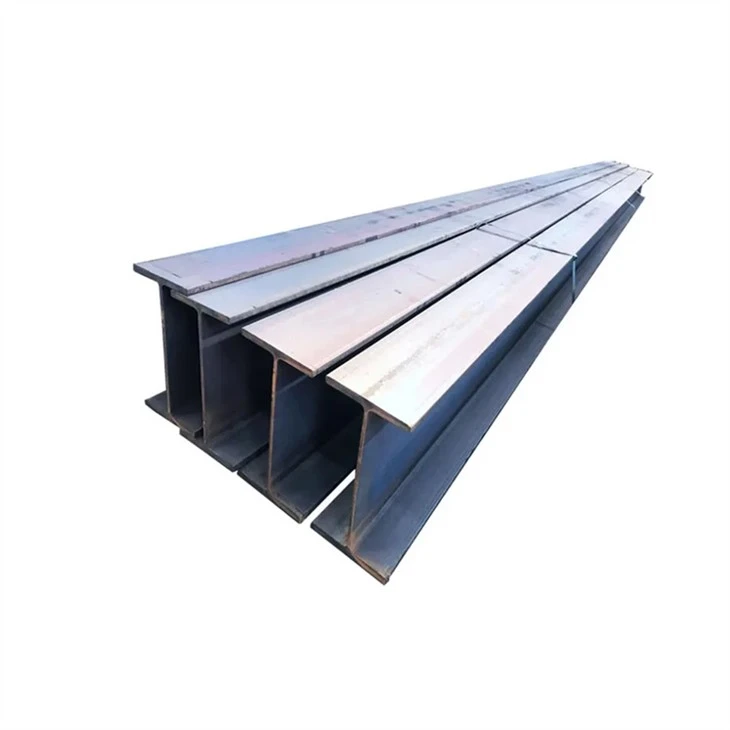

W10 x 4 x 12 H profile steel
H-shaped steel beams yog ib qho tseem ceeb ntawm kev tsim kho niaj hnub thiab engineering tej yaam num vim lawv lub zog, versatility, thiab load-bearing muaj peev xwm. Lawv tau tsim los ua kom muaj txiaj ntsig zoo faib cov khoom thauj thiab muab kev ruaj ntseg, ua rau lawv yog ib qho tseem ceeb hauv kev tsim cov qauv ruaj khov thiab txhim khu kev qha.
| Lub npe | Unit Nyhav (lbs/ft) | Qhov hnyav (kg / m) | Standard SectionalDimension (mm) | Thaj tsam (cm²) | ||||
| W | M | H | B | t1 | t2 | r | A | |
| W10 X 4 | 12 | 17.9 | 251 | 101 | 4.8 | 5.3 | 7.6 | 22.68 |
| 15 | 22.3 | 254 | 102 | 5.8 | 6.9 | 7.6 | 28.43 | |
| 17 | 25.3 | 257 | 102 | 6.1 | 8.4 | 7.6 | 32.26 | |
| 19 | 28.4 | 260 | 102 | 6.4 | 10 | 7.6 | 36.28 | |
W10 x 4 x 12 H profile steel khoom Taw qhia:
|
Khoom npe |
W10 x 4 x 12 H profile steel | ||
|
Loj |
1.Web Dav (H): 100-900mm |
||
|
Ntev |
1m-12m, lossis raws li koj qhov kev thov |
||
|
Ua siab ntev |
± 1 feem pua |
||
|
Txuj |
GB ASTM, JIS, SUS, DIN, EN thiab lwm yam |
||
|
Khoom siv |
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 thiab lwm yam |
||
|
Cov txheej txheem |
Kub dov |
||
|
Kev kho saum npoo |
Galvanized, liab qab, painting, dub, thiab lwm yam |
||
|
Daim ntawv thov |
Kev tsim kho thiab lwm yam |
||
|
Yam khoom |
FOB, CIF, DDU, FCA, EXW. thiab lwm yam |
||
|
Ntim |
Export txheem packing lossis raws li cov neeg siv khoom xav tau |
||
|
MOQ |
1 Tuj |
||
Hais txog peb:
Qhov zoo yog qhov tseem ceeb ntawm txhua yam peb ua. GNEE koom tes nrog cov tuam txhab muaj npe nrov npe nrov rau lawv ua raws li cov qauv nruj nruj. Peb cov txheej txheem tswj xyuas kom zoo kom ntseeg tau tias txhua yam khoom uas tawm ntawm peb cov chaw ua tau raws li lossis tshaj li kev lag luam thoob ntiaj teb. Qhov kev mob siab rau qhov zoo tau ua rau peb muaj kev ntseeg siab ntawm cov neeg siv khoom thoob ntiaj teb.
Pab neeg nthuav qhia:
FAQ:
Q: Yuav ua li cas txog MOQ?
A: Qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog 1 tuj, uas tuaj yeem hloov kho raws li cov neeg siv khoom xav tau. Thov koj tso peb tseg
lus yog tias koj muaj lus nug txog peb thiab peb cov khoom.
Q: Koj puas yog lub tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog ib lub tuam txhab koom ua ke kev lag luam thiab kev lag luam.
Cim npe nrov: a572 qib 50 h profile beam, Tuam Tshoj a572 qib 50 h profile beam manufacturers, lwm tus neeg, Hoobkas
