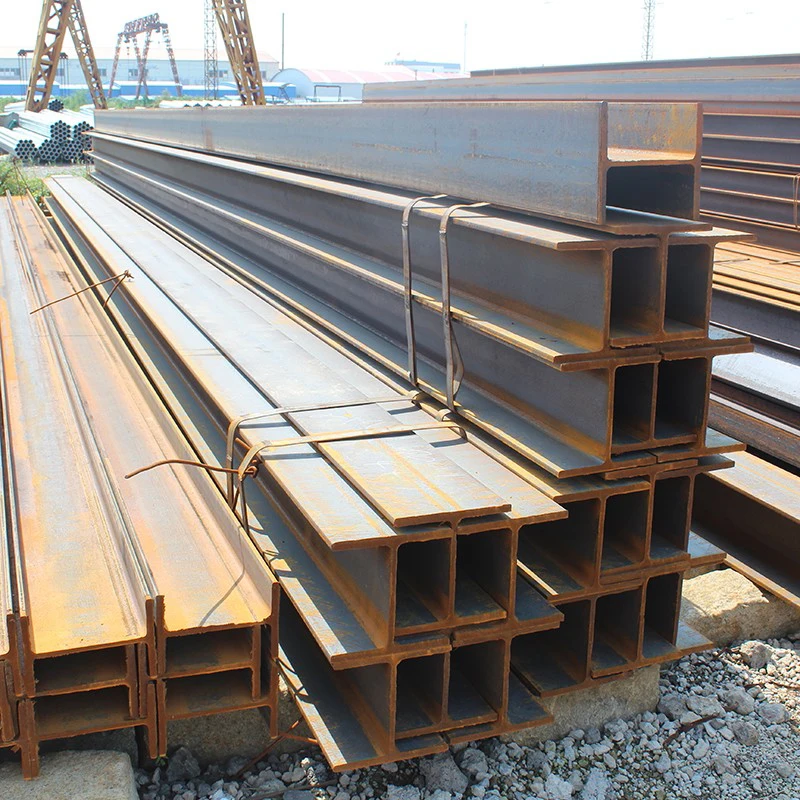

W24 x 12¾ x 146 H profile steel
Kev tsim cov txheej txheem ntawm H-zoo li tus hlau yuav dov thiab shaping steel billets lossis ingots ntawm qhov kub thiab txias. Qhov pib billet yog rhuab thiab dhau los ntawm ntau cov chais uas maj mam ua nws mus rau hauv qhov xav tau H-shaped cross-section. Cov txheej txheem ua kom muaj kev sib haum xeeb thiab lub zog thoob plaws hauv lub nqaj.
| Lub npe | Unit Nyhav (lbs/ft) | Qhov hnyav (kg / m) | Standard SectionalDimension (mm) | Thaj tsam (cm²) | ||||
| W | M | H | B | t1 | t2 | r | A | |
| W24 x 12¾ | 104 | 155 | 611 | 324 | 12.7 | 19.1 | 16.5 | 198.8 |
| 117 | 174 | 616 | 325 | 14.0 | 21.6 | 16.5 | 223.0 | |
| 131 | 195 | 622 | 327 | 15.4 | 24.4 | 16.5 | 249.9 | |
| 146 | 217 | 628 | 328 | 16.5 | 27.7 | 16.5 | 278.4 | |
| 162 | 241 | 635 | 329 | 17.9 | 31.0 | 16.5 | 308.9 | |
| 176 | 262 | 641 | 327 | 19.1 | 34.0 | 16.5 | 334.4 | |
| 192 | 285 | 647 | 329 | 20.6 | 37.1 | 16.5 | 364.4 | |
| 207 | 307 | 653 | 330 | 22.1 | 39.9 | 16.5 | 392.8 | |
| 229 | 341 | 661 | 333 | 24.4 | 43.9 | 16.5 | 434.5 | |
| 250 | 372 | 669 | 335 | 26.4 | 48.0 | 16.5 | 475.1 | |
| 279 | 415 | 679 | 338 | 29.5 | 53.1 | 16.5 | 530.2 | |
| 306 | 455 | 689 | 340 | 32.0 | 57.9 | 16.5 | 580.1 | |
| 335 | 498 | 699 | 343 | 35.1 | 63.0 | 16.5 | 636.2 | |
| 370 | 551 | 711 | 347 | 38.6 | 69.1 | 16.5 | 702.9 | |
W24 x 12¾ x 146 H profile steel khoom Taw qhia:
|
Khoom npe |
W24 x 12¾ x 146 H profile steel |
|
Thickness |
6mm -16 hli |
|
Ntev |
6-12m lossis raws li cov neeg siv khoom thov tshwj xeeb |
|
Ua siab ntev |
Thickness: plus /-0.02mm, Qhov ntev: ntxiv /-2mm |
|
Technical |
Kub dov |
|
Txuj |
AISI, ASTM, DIN, JIS, BS, GB / T |
|
Daim ntawv pov thawj |
ISO/CE/SGS |
|
Pob |
Txuas nrog steel strips thiab qhwv nrog ntawv pov thawj dej |
|
Daim ntawv thov |
Dav siv nyob rau hauv ntau lub tsev tsim thiab engineering qauv, xws li cov nqaj, choj, kis ntauwd, lifting |
|
Qhov zoo |
1. Tus nqi tsim nyog nrog zoo heev 2. Muaj ntau cov Tshuag thiab xa khoom sai |
Hais txog peb:
Ntawm GNEE, peb cov neeg siv khoom ntau dua li cov neeg siv khoom-lawv yog cov koom tes hauv kev ua tiav. Peb mus txog txhua qhov kev koom tes nrog kev nkag siab tob txog peb cov neeg siv khoom tshwj xeeb, ua rau peb tsim cov kev daws teeb meem uas ua raws li lawv lub hom phiaj. Peb cov neeg siv khoom-centric lub tswv yim yog lub hauv paus ntawm peb txoj kev vam meej, txhawb kev sib raug zoo nrog kev ntseeg siab thiab kev loj hlob ntawm kev sib nrig sib.
Pab neeg nthuav qhia:
FAQ:
Q: Koj cov nqe lus them nqi yog dab tsi?
A: Them nyiaj<=1000USD, 100% in advance. Payment>=1000USD, 30 feem pua T / T ua ntej, tshuav nyiaj li cas ua ntej xa khoom xa tuaj lossis them tawm tsam daim B/L hauv 5 hnub ua haujlwm. 100 feem pua Irrevocable L / C thaum pom yog lub sijhawm them nyiaj zoo ib yam.
Q: Koj puas lees txais qhov kev tshuaj xyuas thib peb?
A: Yog lawm peb lees txais.
Cim npe nrov: w24 x 12¾ x 146 h profile steel, Tuam Tshoj w24 x 12¾ x 146 h profile steel manufacturers, lwm tus neeg, Hoobkas
