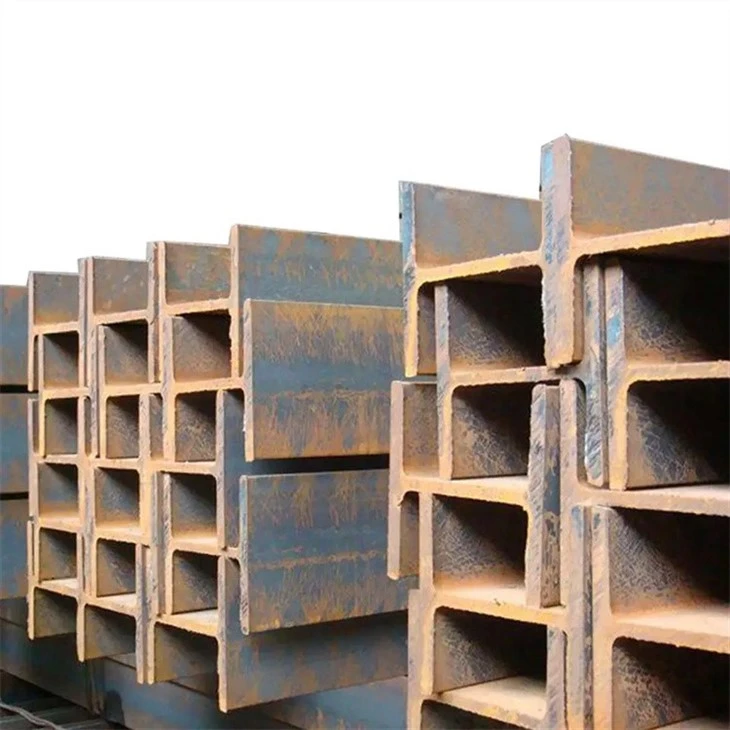

W30 x 10½ x 116 H profile steel
Cov flanges ntawm H-nqaj yog cov kab rov tav uas txuas sab nraud ntawm lub vev xaib hauv nruab nrab. Lawv feem ntau yog taw qhia ntawm 90-degree kaum rau lub vev xaib. Cov flanges muab kev tiv thaiv tiv thaiv kev khoov thiab axial loads. Qhov dav thiab tuab ntawm cov flanges tuaj yeem sib txawv, thiab lawv feem ntau yog tsim los ua kom zoo dua cov nqaj lub peev xwm thauj khoom.
| Lub npe | Unit Nyhav (lbs/ft) | Qhov hnyav (kg / m) | Standard SectionalDimension (mm) | Thaj tsam (cm²) | ||||
| W | M | H | B | t1 | t2 | r | A | |
| W30 x 10½ | 90 | 134 | 750 | 264 | 11.94 | 15.49 | 28.0 | 174.4 |
| 99 | 147 | 753 | 265 | 13.21 | 17.02 | 28.0 | 192.1 | |
| 108 | 161 | 758 | 266 | 13.84 | 19.30 | 28.0 | 209.0 | |
| 116 | 173 | 762 | 267 | 14.35 | 21.59 | 28.0 | 225.0 | |
| 124 | 185 | 766 | 267 | 14.86 | 23.62 | 28.0 | 239.8 | |
| 132 | 196 | 770 | 268 | 15.62 | 25.40 | 28.0 | 255.1 | |
| 148 | 220 | 779 | 266 | 16.51 | 29.97 | 28.0 | 285.0 | |
W30 x 10½ x 116 H profile steel khoom Taw qhia:
|
Khoom npe |
W30 x 10½ x 116 H profile steel |
|
Thickness |
6mm -16 hli |
|
Ntev |
6-12m lossis raws li cov neeg siv khoom thov tshwj xeeb |
|
Ua siab ntev |
Thickness: plus /-0.02mm, Qhov ntev: ntxiv /-2mm |
|
Technical |
Kub dov |
|
Txuj |
AISI, ASTM, DIN, JIS, BS, GB / T |
|
Daim ntawv pov thawj |
ISO/CE/SGS |
|
Pob |
Txuas nrog steel strips thiab qhwv nrog ntawv pov thawj dej |
|
Daim ntawv thov |
Dav siv nyob rau hauv ntau lub tsev tsim thiab engineering qauv, xws li cov nqaj, choj, kis ntauwd, lifting |
|
Qhov zoo |
1. Tus nqi tsim nyog nrog zoo heev 2. Muaj ntau cov Tshuag thiab xa khoom sai |
Hais txog peb:
GNEE tau cog lus los tswj cov qauv siab tshaj plaws ntawm kev ua tau zoo thoob plaws tag nrho nws cov khoom. Lub tuam txhab ntiav cov txheej txheem tsim khoom, kev siv thev naus laus zis thev naus laus zis, thiab kev tswj xyuas nruj kom ntseeg tau tias nws cov khoom siv hlau ua tau raws li lossis tshaj li cov qauv kev lag luam thiab cov neeg siv khoom xav tau.
Pab neeg nthuav qhia:
FAQ:
Feem ntau peb yuav siv 1 ~ 3 hnub los ua tus qauv.
2, Koj lub sijhawm xa khoom yog dab tsi?
Rau cov khoom lag luam, peb tuaj yeem xa cov khoom tsis pub dhau 7 hnub tom qab tau txais koj qhov tso nyiaj
Rau kev hloov kho, nws feem ntau xav tau nyob ib ncig ntawm 15 hnub - 30 hnub tom qab tau txais qhov tso nyiaj
